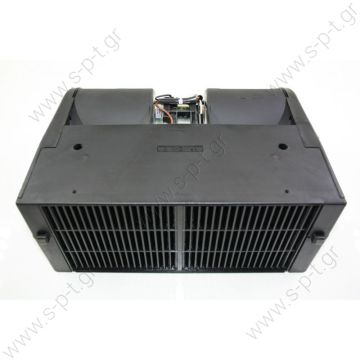

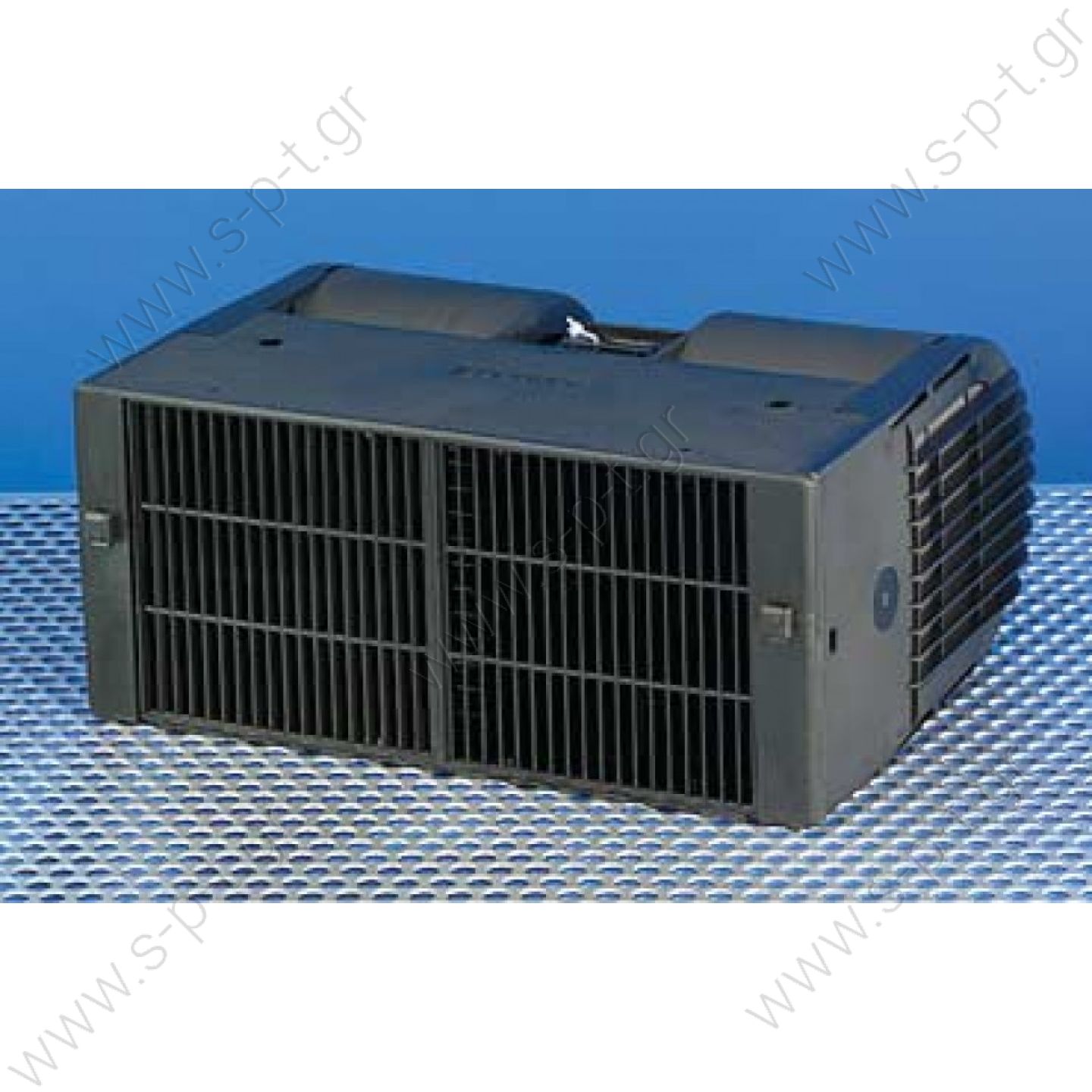

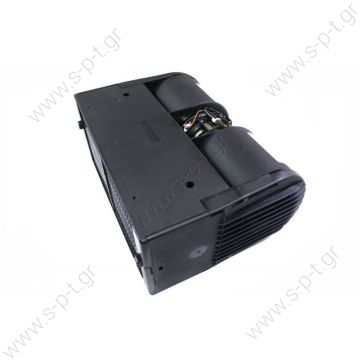

151-552-0024 ΚΑΛΟΡΙΦΕΡ 24V AURORA Teddy 2000 installation heater 24V 2 speed Heater Teddy f. Solaris / MAN 2-stage, connections parallel Ref. 1515520024 , 1805000200 , 1103408724v - Teddy Heater 7.2kW

  • Κωδικός Προϊόντος: AURORA TEDDY 2000

Περιγραφή

ΚΑΛΟΡΙΦΕΡ 24V AURORA 151-552-0042  Heater TEDDY 2000 2-st. 24V

24v - Teddy Heater 7.2kW

  Built-in heater:
Without air outlet and side air intake grille.

Recirculating air heater:
With air outlet grille and side section with integrated air intake grille. The air direction can be changed by adjusting the air outlet grille by 90º.

Defroster:
Outlet moulding with 6 hose connections of 65mm diameter.

Material:
Polyamide PA6, glass-fibre reinforced.

Heat exchanger:
Teddy 2000: Flat tube heat exchanger system made from copper/brass.
Teddy-oil 2000: Plate heat exchanger system made from aluminium.

Blower speeds via series resistor with ceramic heat sink and mikro-temperature fusing.

Nominal voltage: 24 Volt, also available in 12 Volt.

Teddy 2000:
Test voltage: 13V /26V
Heat transfer medium: water with 0% antifreeze
Volume flow rate: 1000l/h

measures Teddy 2000:
BxHxT: 323x137x260 mm
12,72x5,39x10,24 inch

Teddy-Oil 2000:
Test voltage: 13V / 26V
Heat transfer medium: Mineral oil
Volume rate: 1200 l/h
